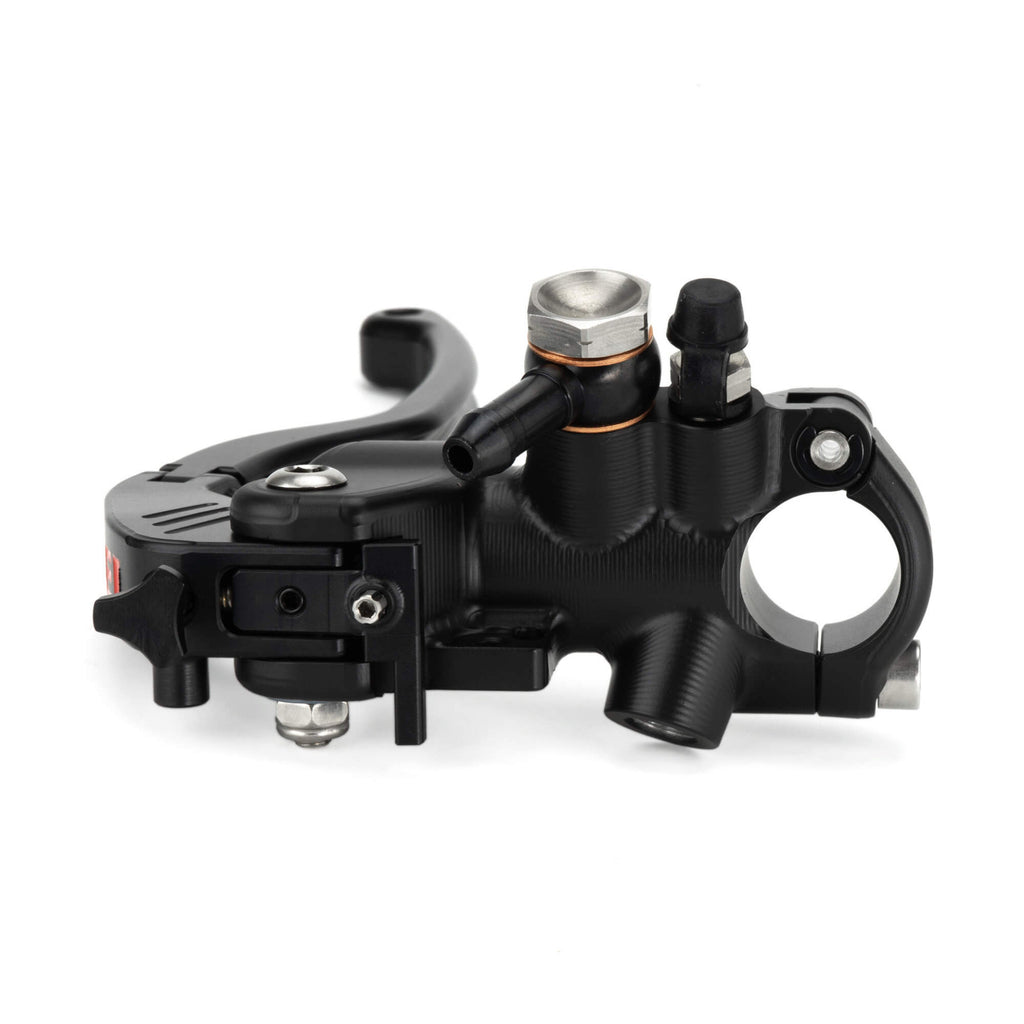

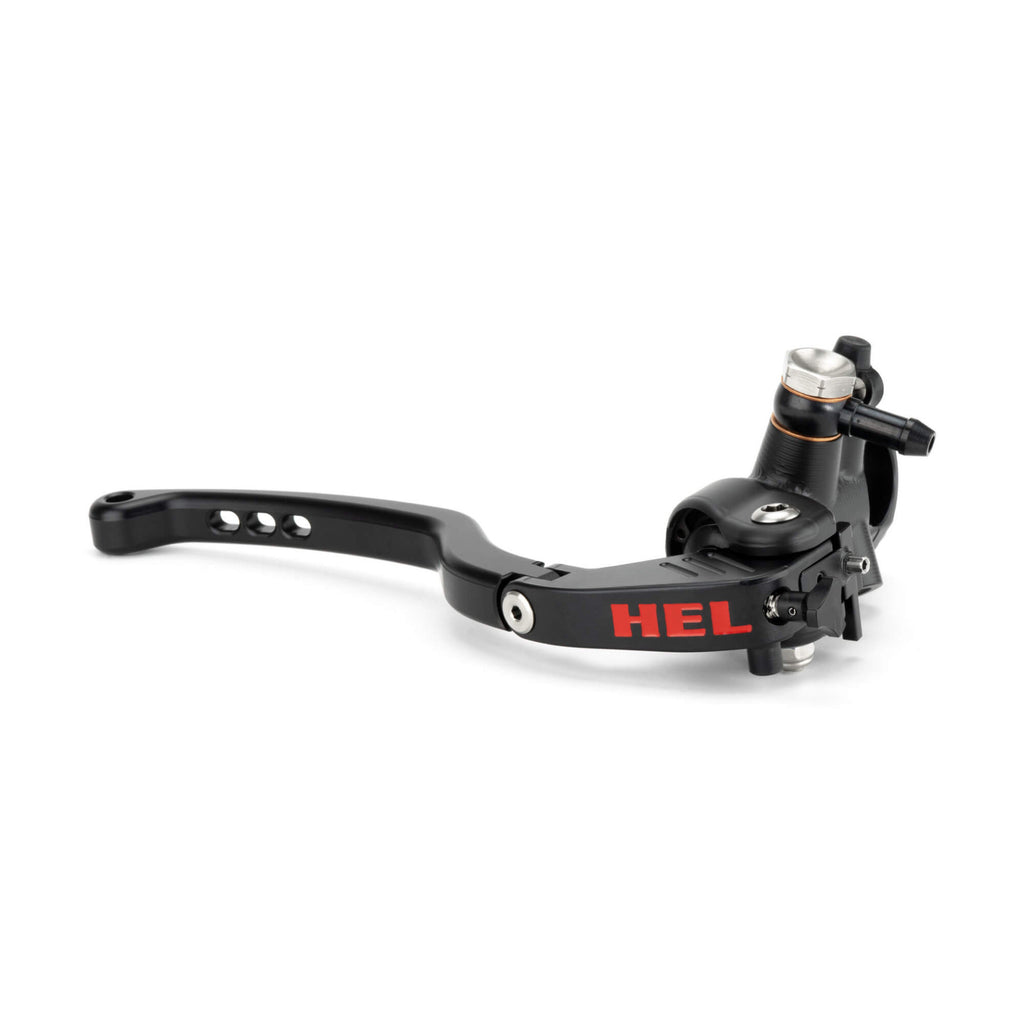

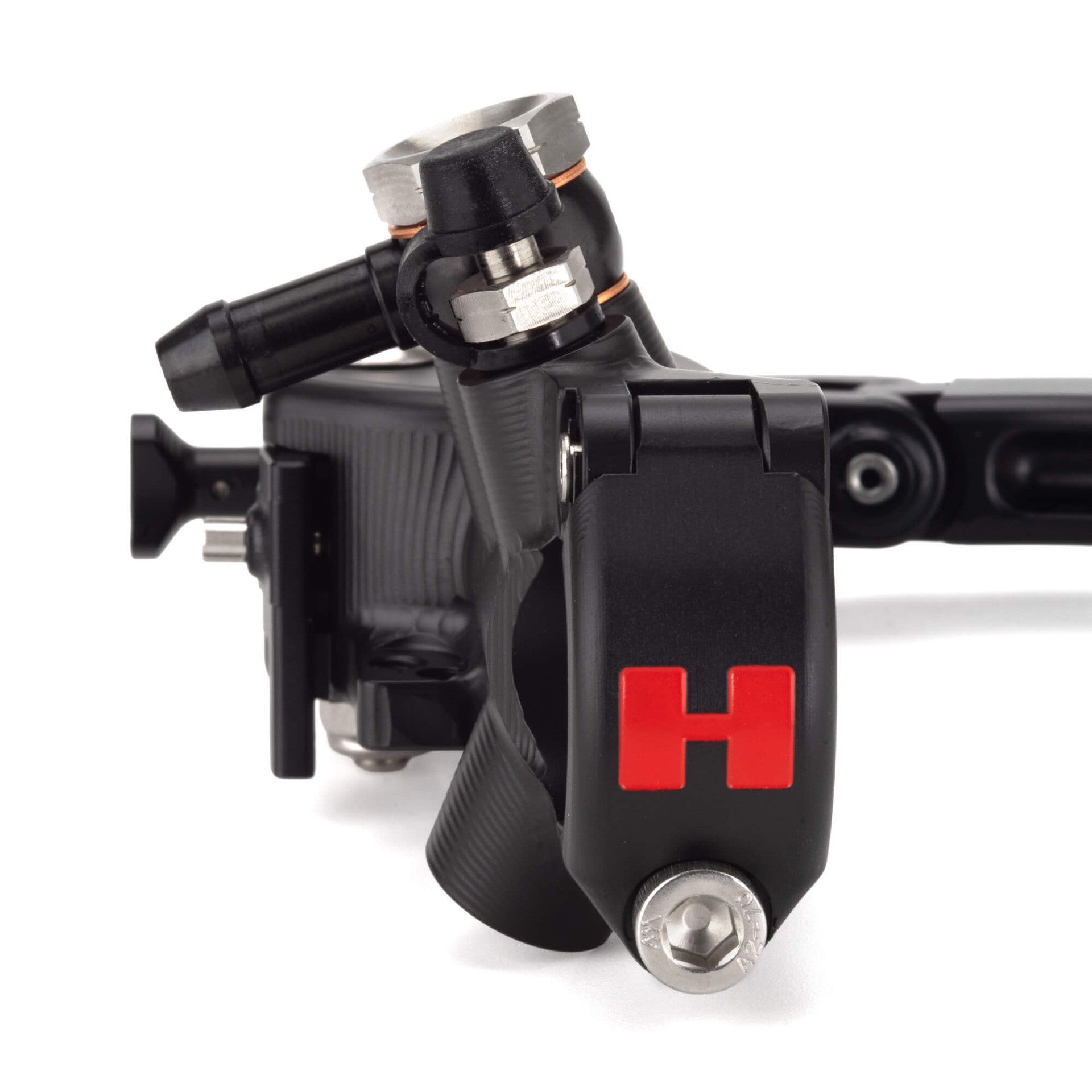

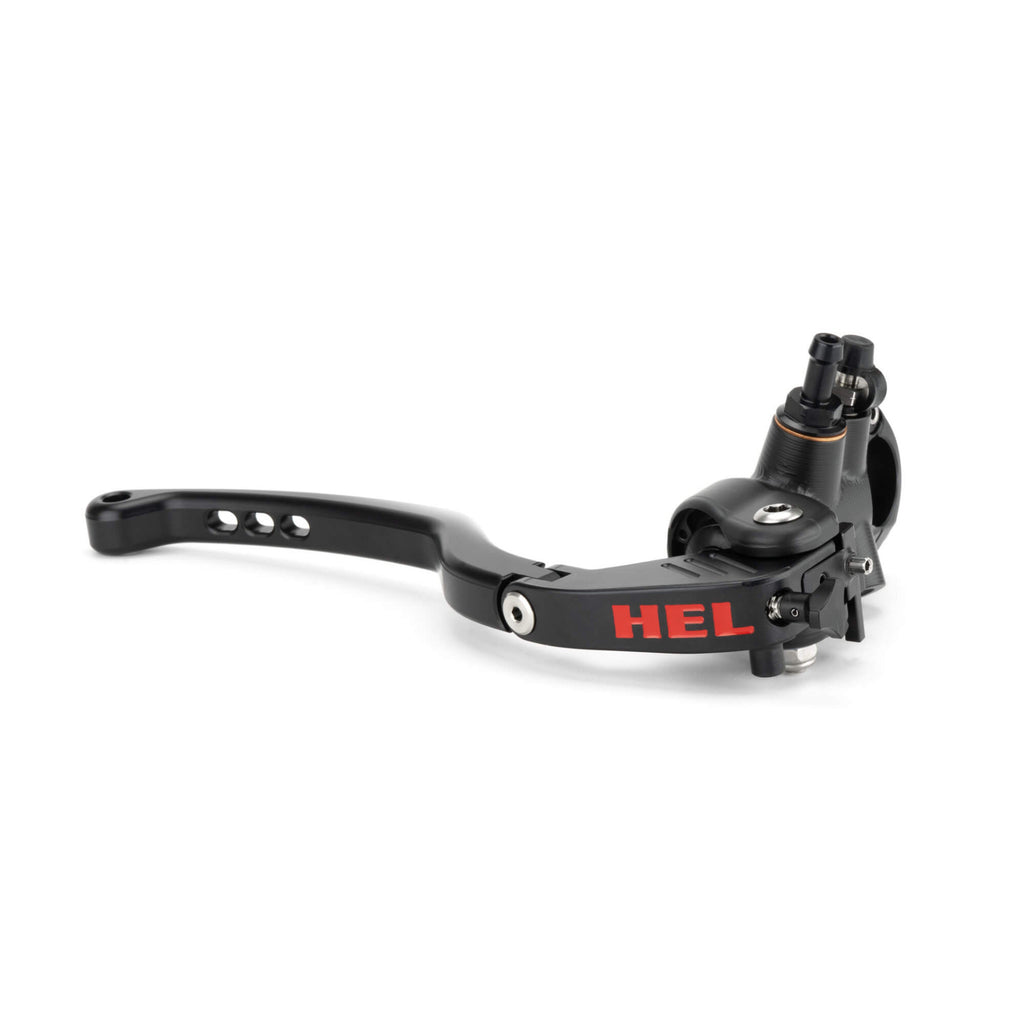

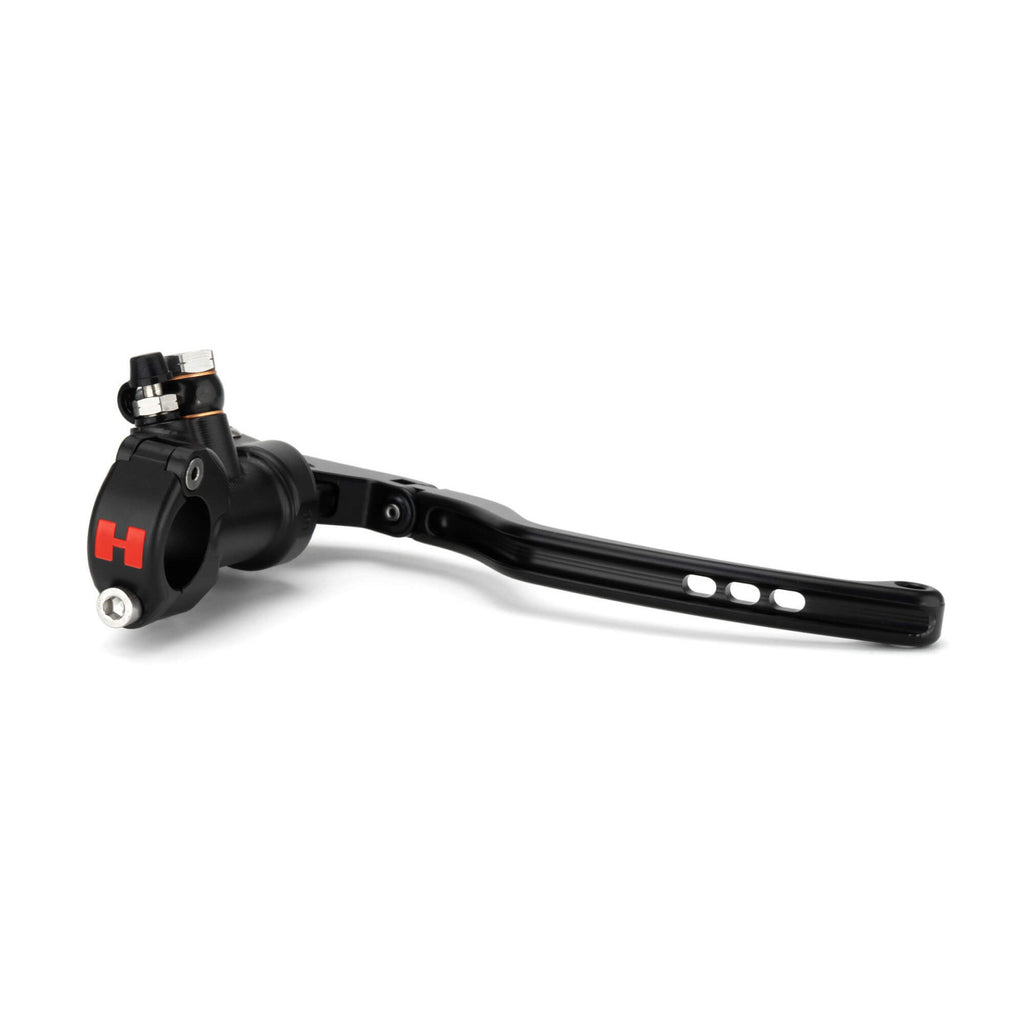

HEL V2 Billet Radial Brake Master

The HEL V2 Billet Radial Master Cylinder offers the ultimate upgrade in braking control and build quality for riders who demand precision, performance, and premium craftsmanship. Engineered by HEL Performance in the UK, this master cylinder is fully CNC-machined from solid 6082-T6 aluminium billet — never cast, delivering superior strength, finish consistency and reliability under load.

With its radial piston design, multiple ratio options, lever lengths, and adjustable features, the V2 is designed for everything from performance street bikes to track machines — giving you better lever feel, consistent pressure, and customised ergonomics that make a real difference on the road or circuit.

Choosing the Right Specification

When selecting your HEL V2, two critical choices must be made — the piston bore size (which influences hydraulic pressure and lever feel) and the handlebar clamp/bar diameter (which ensures fitment to your bike’s bars):

• 16 mm Bore – Ideal for smaller bikes, single-disc front brake setups, or clutch systems. Offers greater lever travel, softer feel, and increased modulation.

• 19 mm Bore – Engineered for twin-disc front calipers or high­performance motorcycles. Delivers firmer lever feel, quicker bite and stronger brake response.

• 22 mm Clamp (7/8″ bars) – Suits the majority of sportbikes, naked bikes, and custom builds with standard handlebar diameter. (Standard)

• 25 mm Clamp (1″ bars) – Designed for cruisers, tourers, or bikes with 1″ handlebars (such as many Harleys) offering perfect fitment without compromise. (Custom Order)

By choosing the correct combination, you’ll ensure your HEL V2 master cylinder is not only high performance, but also intimately matched to your machine — both in feel and fit.

Key Features

• Genuine HEL Performance V2 Billet Radial Master Cylinder — the latest generation from HEL.

• CNC-machined billet aluminium body (6082-T6) for unmatched strength, precision & light weight.

• Integrated, removable brake-light microswitch for road compatibility.

• Rapid ratio adjustment switch beneath the lever for fine-tuning lever travel and feel.

• Three lever lengths available (Compact 120 mm / Regular 130 mm / Extended 140 mm) to suit your riding style and hand size.

• Available in lever ratios such as 15/16 or 17/16 for 16 mm bore, 18/19 or 20/19 for 19 mm bore — enabling you to match feel to your brake setup.

• Finish: Choose between Black or Grey anodised, ensuring corrosion resistance and aesthetic excellence.

Fitment & Installation

Select your required bore size (16 mm or 19 mm) based on your brake setup, and choose the correct handle-bar clamp size (22 mm or 25 mm) for your motorcycle’s bar diameter.
For full compatibility and installation instructions, visit:
👉 HEL Performance Installation & Fitment Guide

Professional installation and thorough bleeding of the hydraulic system are strongly advised to extract the full performance benefit from this upgrade.

Why Choose HEL Performance

When you opt for HEL Performance, you’re choosing components trusted by race teams, built in the UK, processed under strict QC standards, and engineered to deliver measurable improvements in control, feel and reliability. The V2 Billet Radial Master Cylinder is a standout component for any serious performance build — whether you’re on the street, track or both.
